Product Introduction

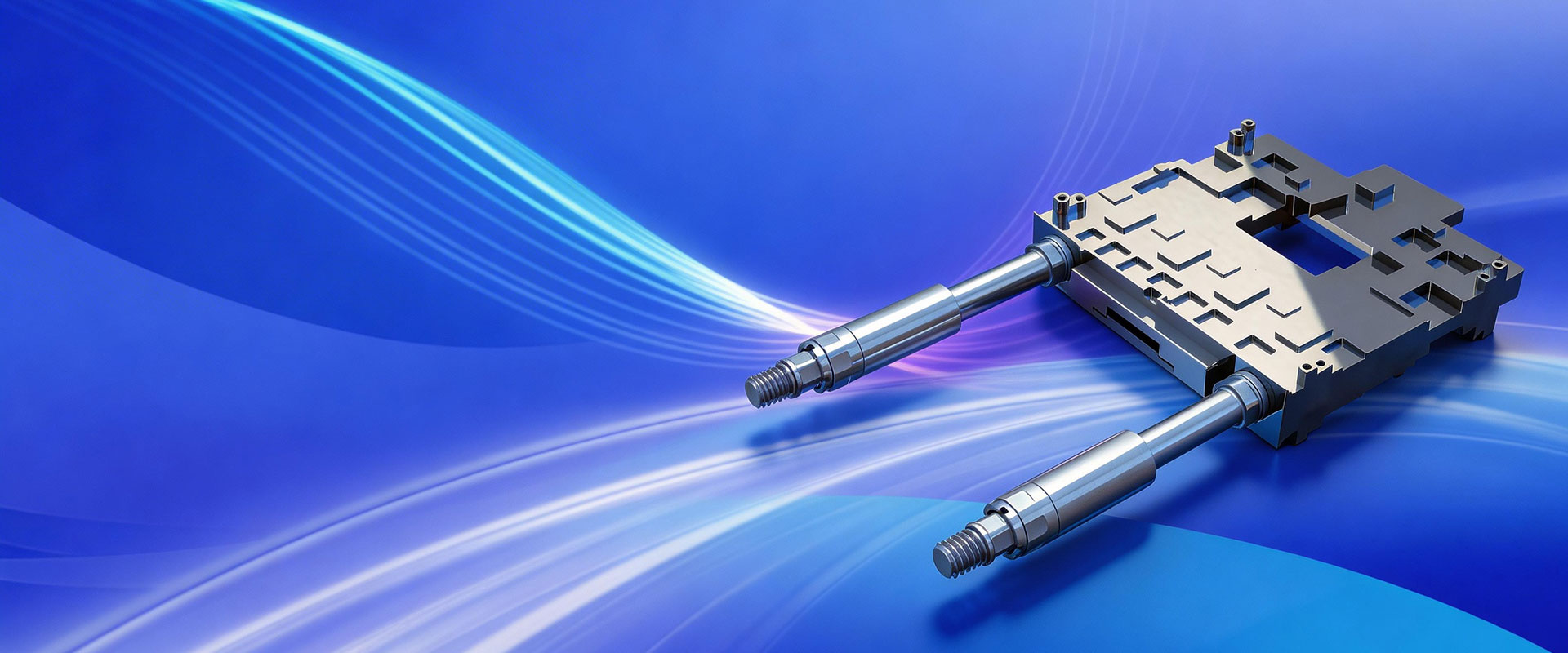

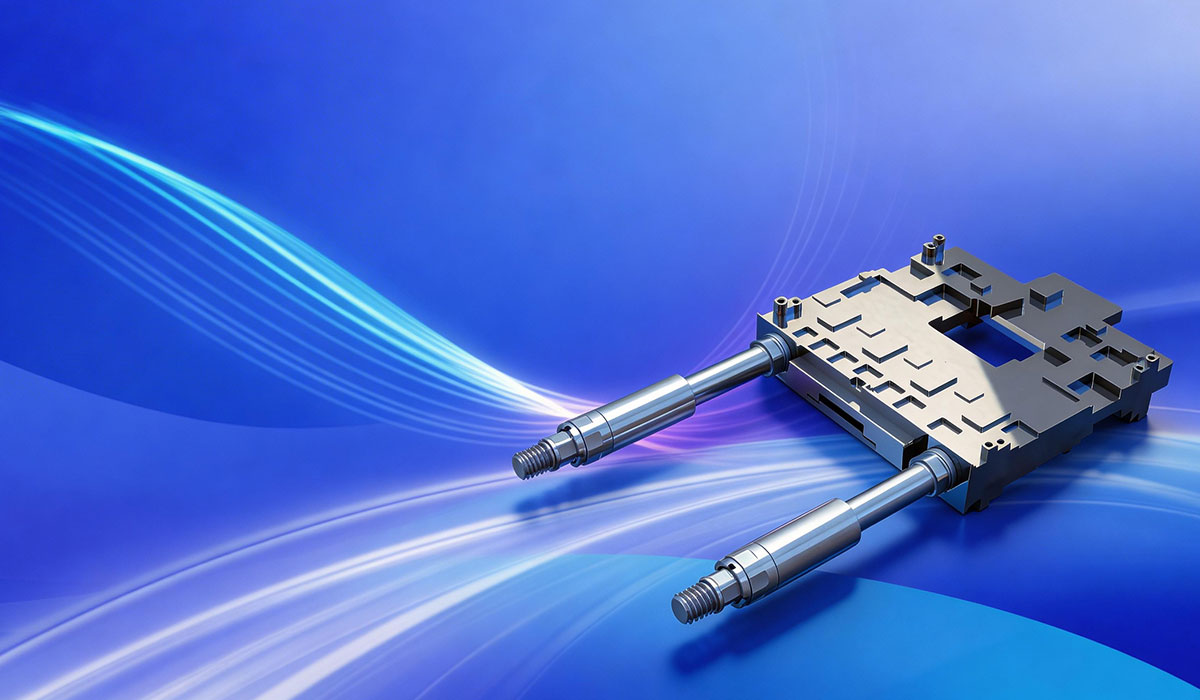

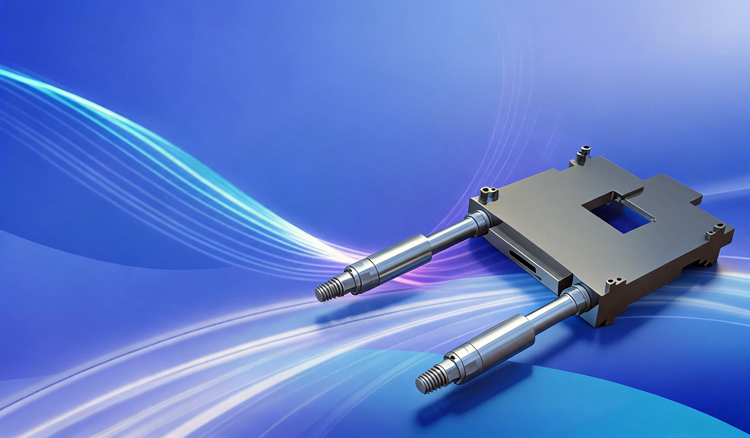

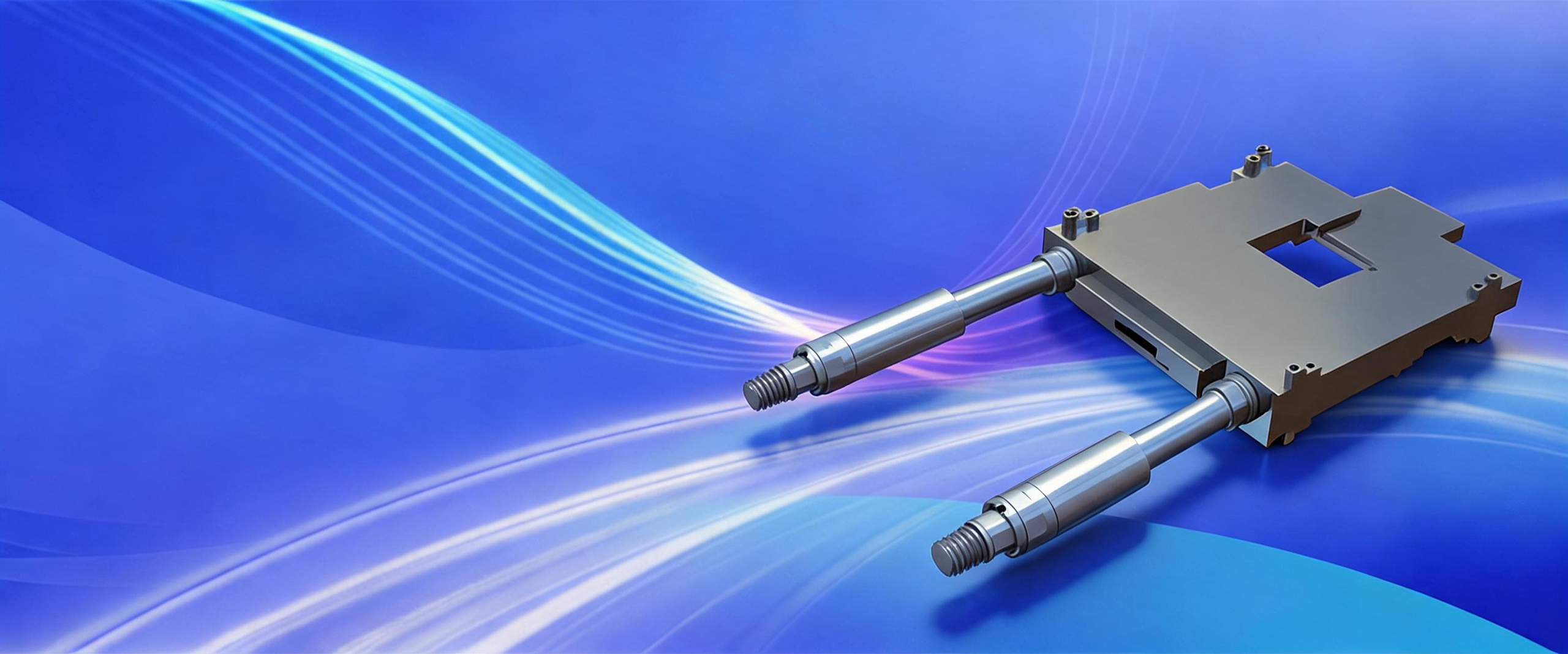

XPO Optical Module Liquid Cooling Product

Orthogonal Flow Channels:
Designed to cool heat sources at different positions and power densities.

Flow Rate Matching for Enhanced Heat Transfer:
Maintains low pressure drop to ensure sufficient flow rate, supporting heat flux densities up to 50 W/cm².

TeraCule Proprietary Mini QD Blind-Mating Connector:
Provides improved alignment compensation with a floating tolerance of ±0.5 mm. Lower pressure drop at the same flow rate, delivering up to 20% improvement over industry standards.

System Configurations

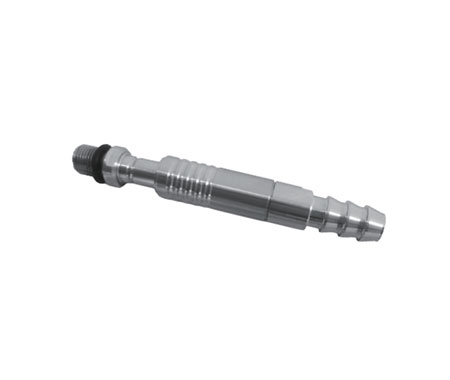

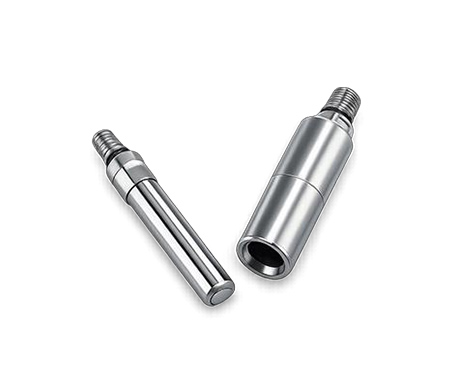

TeraCule Self-developed XBMC MiniQD Product

Safe and Reliable:
Seals are maintained in both connected and disconnected states, ensuring leak-free operation and reliable performance.

Wear and Corrosion Resistance:
The housing material and plating provide excellent wear and corrosion resistance.

Large Flow Path; Strong Misalignment Tolerance:
-Maximum outer diameter: 8 mm
-Effective flow path diameter: 2.6 mm
-Floating range: ±0.5 mm

Compliant with Sealed Connection Standards:
Fluid connectors support diverse installation configurations with tubing and cold plates.

Technical Specifications

Key Parameters	Parameter Description
Dimensions	102.25 × 58.4 × 13.4 mm
Coolant	DI water, PG25
Inlet Temperature	40 °C
Flow Rate	0.7 LPM
Pressure Drop	10 ± 15% kPa
Optical Module Cold Plate Tcase	65.8 °C
Optical Module Cold Plate Thermal Resistance	≤0.095 °C/W @ 0.7 LPM
Optical Module Power Consumption	220 W
Quick Connector	TeraCule mini female quick connector
Note: Performance may vary depending on operating conditions. For data not listed, please contact TeraCule.
